5256-19-10 E-ZEE HEAT SEAL 5mil

5256-19-10 E-ZEE HEAT SEAL 5mil

#5256-19-10 E-ZEE Polyester Heat Seal for patches and appliqués 5 mil
  • #5256-19-10 E-ZEE Polyester Heat Seal for patches and appliqués 5 mil
  • 5256-19-10 E-ZEE HEAT SEAL 5mil

Product Description

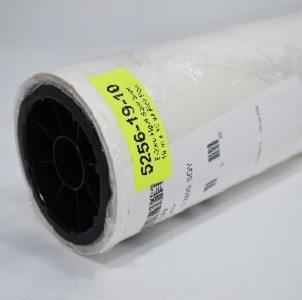

19inX10yd ROLL POLY

This product replaces item# 5250-19-10.

E-Zee Heat Seal 5256 5 mil. is a polyester heat seal with heat-activated adhesives on both sides.

A special release paper is on one side to allow for pressing. It may be used alone or in conjunction with Heat Laminate 3218 to produce permanent seals on patches and appliqués. An economical patch can be created by using 3218 as a stiffener before embroidering and then adding the 5250 as a final coat. It adheres well to cotton, poly/cotton and other blended fabric  substrates. Made of polyester.


  • E-Zee Heat Seal 5256
  • Translucent
  • Polyester
  • 5 mil.
  • Double-sided heat activated adhesive
  • 19" x 10 yard roll

For use with:

  • Badges
  • Patches
  • Emblems

Heat press settings:

  • Machine setting:160°C to 200°C (320°F to 392°F)
  • Dwell time: 15 to 20 seconds
  • Pressure: 2.8 to 4.2 Bar (40-60 psi)

How to use:
Embroider design and remove from the hoop. Lay a piece of E-Zee Heat Seal on the back side of the embroidery with the release paper facing up. Use an iron or heat press to bond E-Zee Heat Seal to the fabric (see chart above). Allow to cool and then pull off the release paper. Cut the patch to shape with scissors or a die cutter. Finish the edges with a serging machine or a zig-zag stitch on a home sewing machine. Note: ALWAYS test at lowest temperature and time first.

Please note:
The recommended heat setting for the garment or substrate must be taken into account when setting the temperature of the iron or heat press for heat seals. Use a press cloth or silicone sheet as needed.


E-Zee Heat Seal 5256 product sheet.pdf

How to Make Patches.pdf

How to Make Applique.pdf
